安全光幕芯片

用于脉冲LED和光学接收器的芯片：构建具有最短的反应时间和高分辨率的安全光幕应用。您可以信赖的安全！

iC-Haus 安全光幕 iC 是专用芯片用于电敏防护设备 (ESPE - Electro-Sensitive Protective Equipment)，给脉冲 LED 和光电接收器提供失效保护束光控制。传送器和接收器芯片 iC-Haus 都提供。

安全光幕传送器是专用芯片带失效保护束光控制逻辑和集成可调LED电流驱动器。接收器也带失效保护束光控制逻辑，可连接外部光电二极管或用集成光电二极管 (按型号)。

应用:

安全光幕

iC-Haus 安全光幕传送器芯片:

iC-NL

光幕脉冲驱动器, 带调制输入

iC-NT

光幕脉冲驱动器用于光幕, 光障和电敏防护设备

iC-Haus 安全光幕接收器芯片:

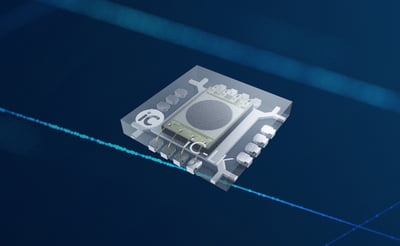

iC-LK	光幕脉冲接收器, 带集成光电二极管特性: Photoelectric amplifier with integrated photodiode Built-in bandpass filter with switchable centre frequency Differential current output with open-drain low-side drivers Recovery time below 10 μs even for excessive photocurrents within the input range Single 5 V supply 应用: Light curtain LED driver Light barrier LED driver Electro-sensitive protective equipment (ESPE) 下载 iC-LK 的技术文档更多信息关于 iC-LK (iC-Haus 英文网站)
iC-ME	2通道光幕脉冲接收器特性: Dual photo diode inputs with photoelectric amplifier Built-in bandpass filter with 300 kHz center frequency Differential current-signal output with open drain low-side drivers Recovery time below 10 μs for excessive photocurrents of up to 1.8 mA Shift register and control logic Single 5 V supply FMEA driven circuit and layout topology Suited for high-risk applications according to IEC 61496-1 应用: Light curtain LED driver Light barrier LED driver Electro-sensitive protective equipment (ESPE) 下载 iC-ME 的技术文档更多信息关于 iC-ME (iC-Haus 英文网站)
iC-NE	光幕脉冲接收器用于光幕, 光障和电敏防护设备特性: Photoelectric amplifier adapted to standard photodiodes Built-in band-pass filter with 300 kHz center frequency Differential current-signal output Wide dynamic range of 100 nA to 1.5 mA for pulsed photocurrents Three stage shift register and control logic Suited for high-risk applications according to IEC 61496-1 应用: Light curtain LED driver Light barrier LED driver Electro-sensitive protective equipment (ESPE) 下载 iC-NE 的技术文档更多信息关于 iC-NE (iC-Haus 英文网站)
iC-NK	光幕脉冲接收器特性: Photoelectric amplifier with integrated bandpass Processing of light pulses up to 1MHz Differential current-signal output Wide dynamic range of 0.3 μA to 1.8mA for pulsed photo currents Fast recovery time of 0.5 μs within dynamic range 2-step shift register and control logic 应用: Light curtain LED driver Light barrier LED driver Electro-sensitive protective equipment (ESPE) 下载 iC-NK 的技术文档更多信息关于 iC-NK (iC-Haus 英文网站)

回产品展示网页
